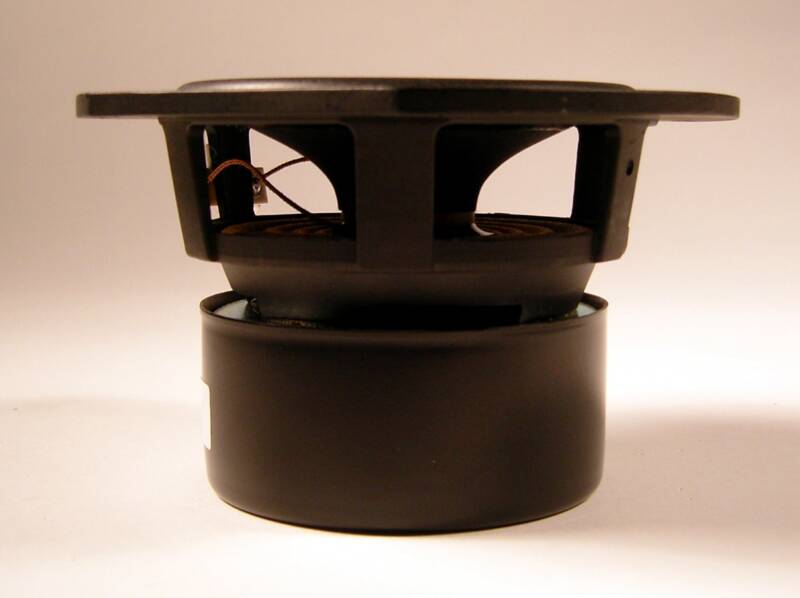

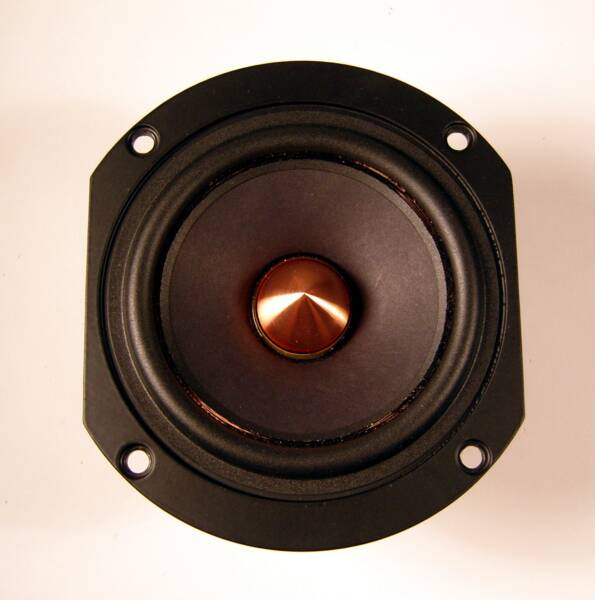

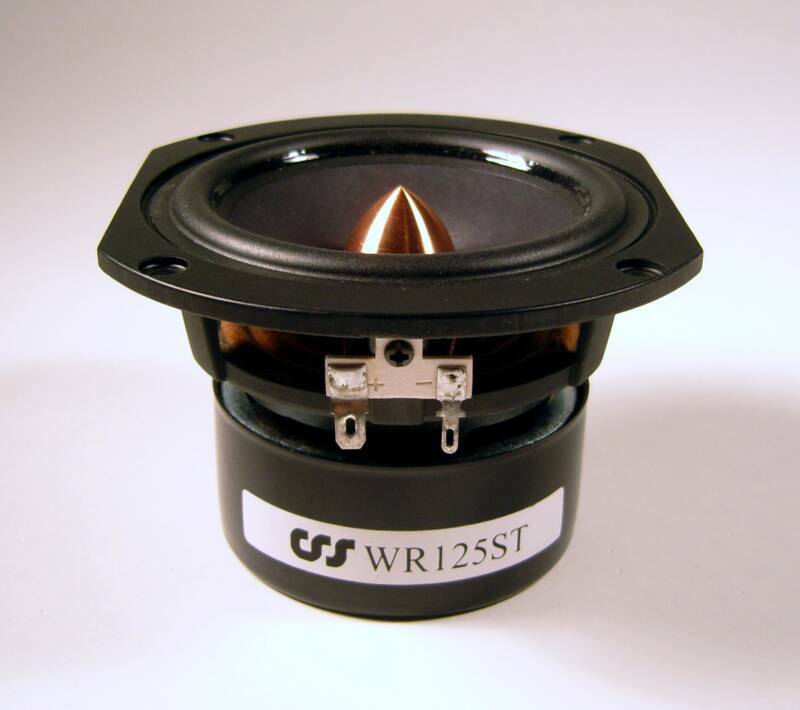

CSS
WR125ST
This woofer is found in the MTM 4, and Super Spire Reference speakers and kits
16 ohm version of the first 4.5" speaker with patented XBL^2 motor technology.
Parameters are Fs: 65 Hz, Qms: 3.98, Qes: 0.77, Qts: 0.65, Vas: 5.8L, Sd: 57 cm^2, Xmax: 6mm one way, Re: 14.1 Ohms, Le: 0.65 mH, BL:5.7 N/A, Mms: 4.5 grams, SPL: 85.8 dB @ 1W, 1m.

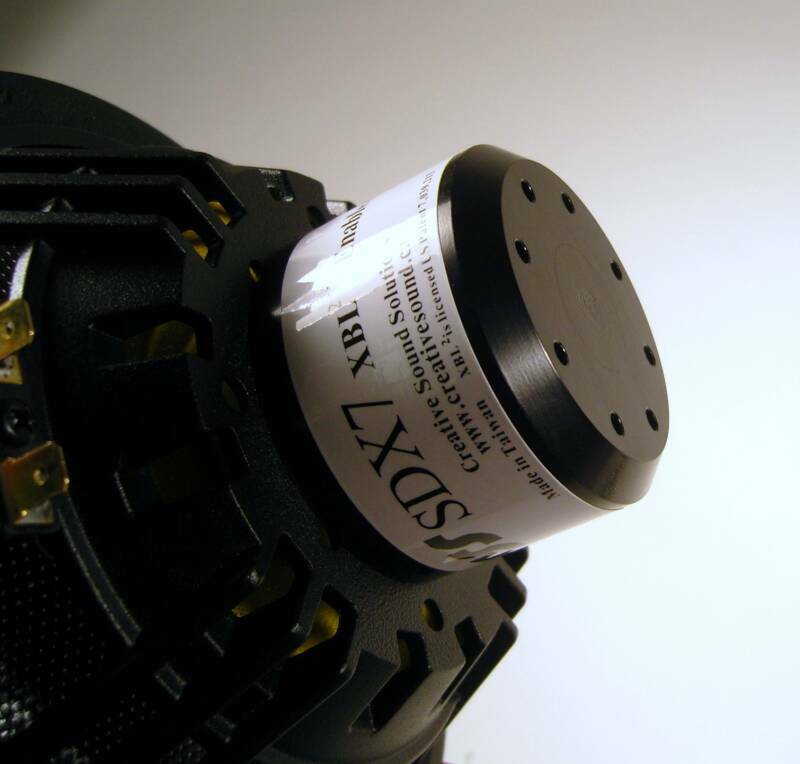

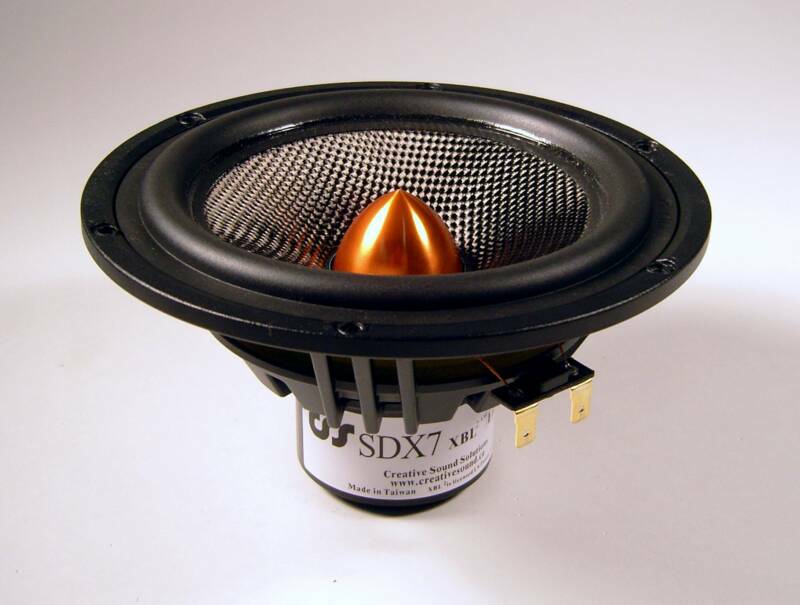

CSS

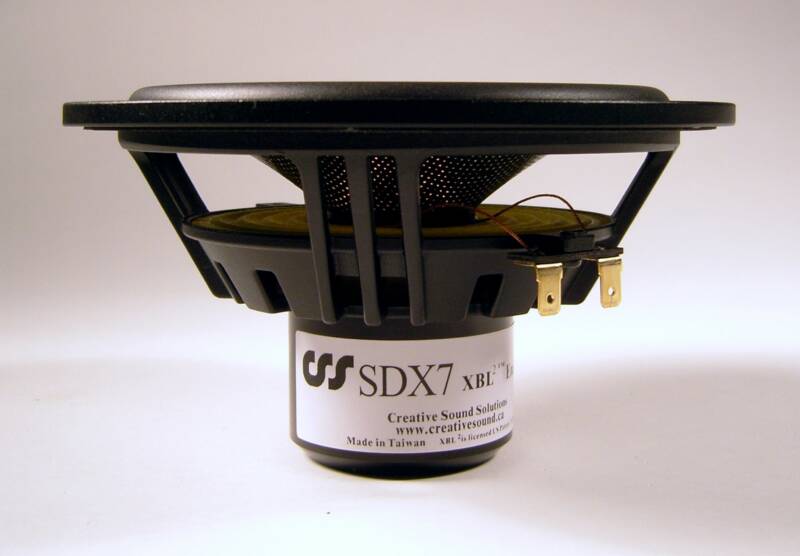

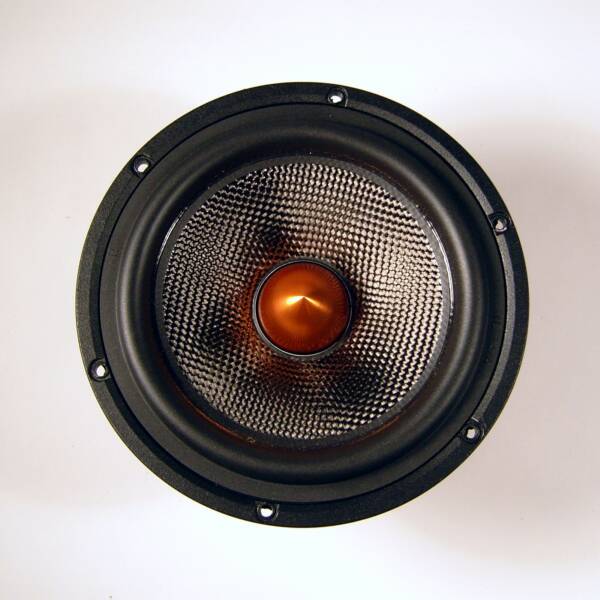

SDX7
This woofer is found in the MTM 7, and MT 27 speakers and kits
The SDX7 woofer is now available. Designed as a replacement for the Extremis 6.8 in 3 way designs as well as being suitable for small sub duty, it has a carbon fibre cone and WR/FR matching copper phase plug.
Parameters: Fs 34Hz, Qms 2.2, Vas 23.77 litres, Xmax 11.1 mm, SD 127.5 sq cm, Qes .41, Re 6.4 ohms, Le .75 mH, Z 8 ohms, Pe 100 watts

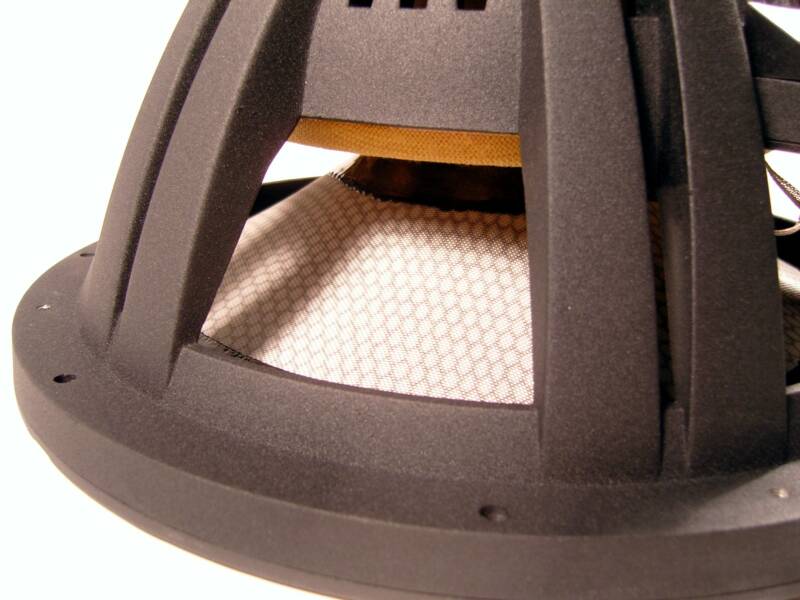

CSS

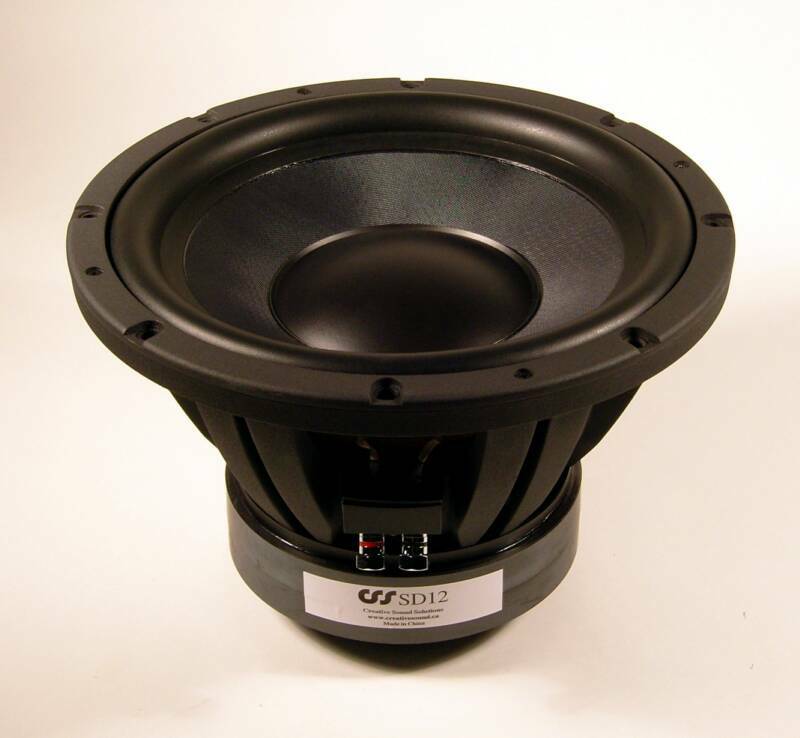

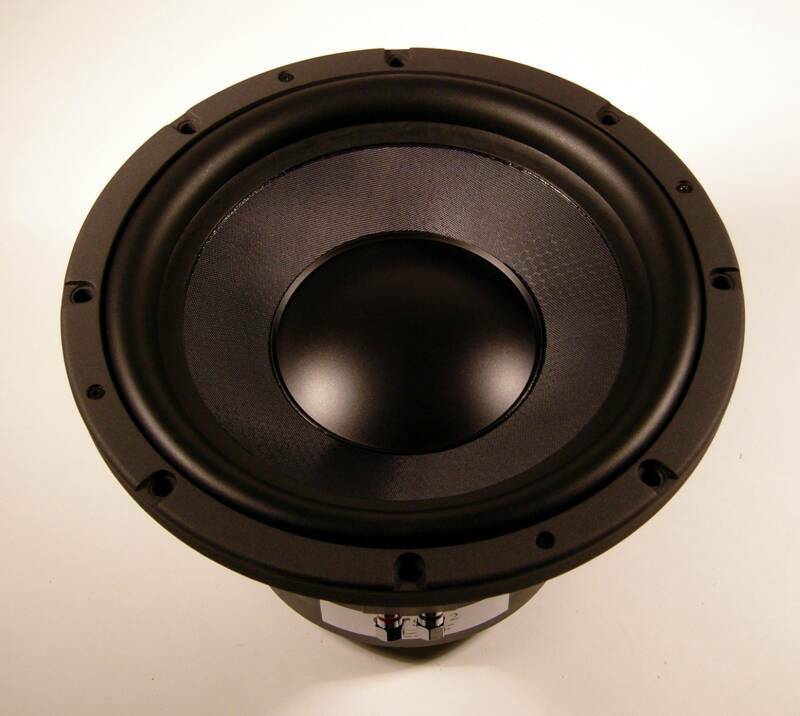

SD12
This woofer is found in the Sub SD12 Kits and finished subwoofers
Are you ready for SubDuction
From the Latin - "to lead from below" - Get the bass right and you establish a firm foundation for the rest of your music and sound reproduction. Introducing the SD12, the first sub woofer in the new CSS SubDuction series.
- fiberglass/nomex woven cone with NBR surround
- high power, low inductance design, 2 layer 3" copper voice coil and large aluminium shorting ring inside the magnet
- forged and machined T-yoke and top plate with larger radiused pole vent for low aerodynamic noise
- high excursion spider with integrated lead wire
- attractive cast aluminum basket design with cast aluminum trim ring
- long Xmax and a "bottomless" basket design
Parameters:Re: 3.6, Le:1.45, Fs: 23.3, Qms: 2.87, Qes: 0.447, Qts: 0.387, Vas: 83.3, Cms: 0.25, SD: 490, Xmax 19.5, Xmech: 32, BL: 14.6, Mms: 186.4, SPL: 85.6

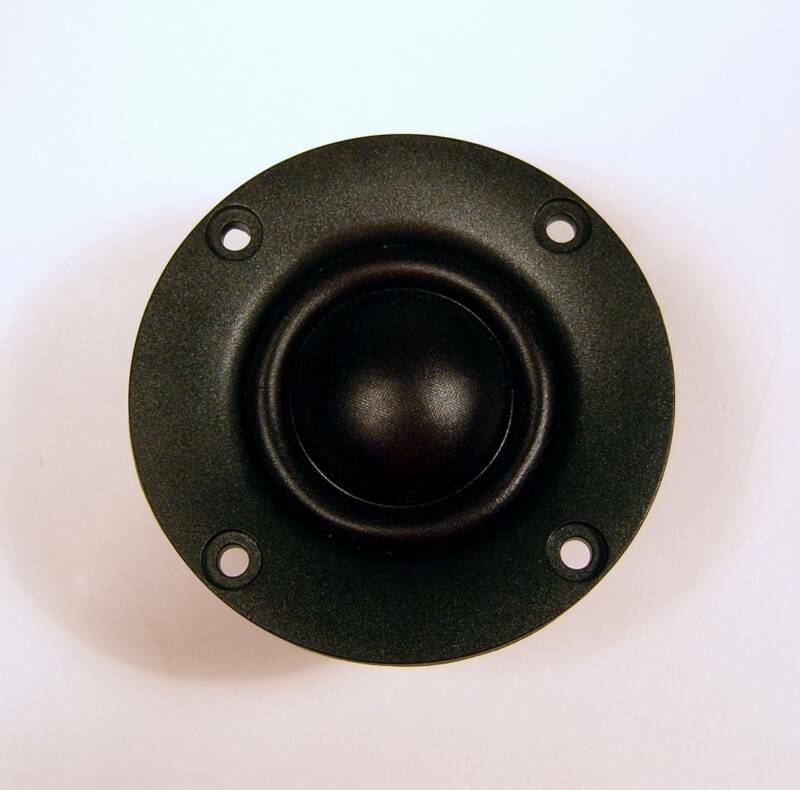

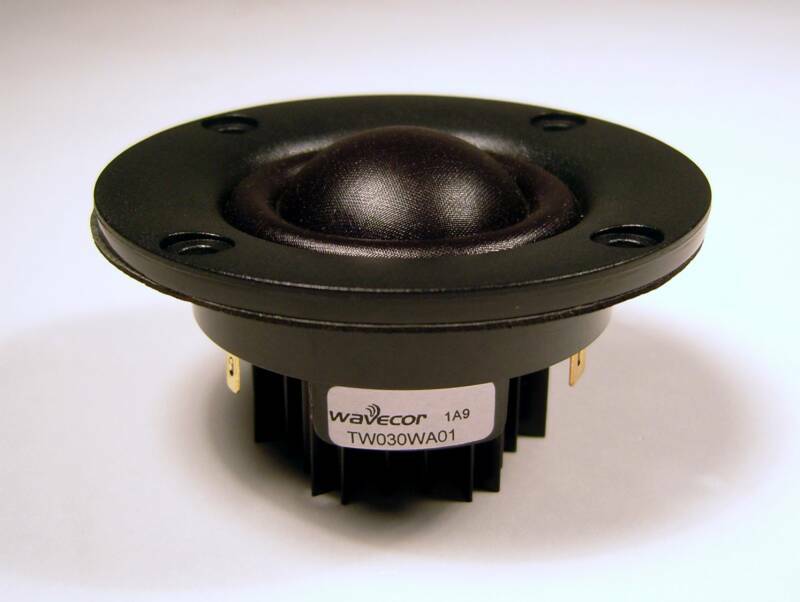

wavecor

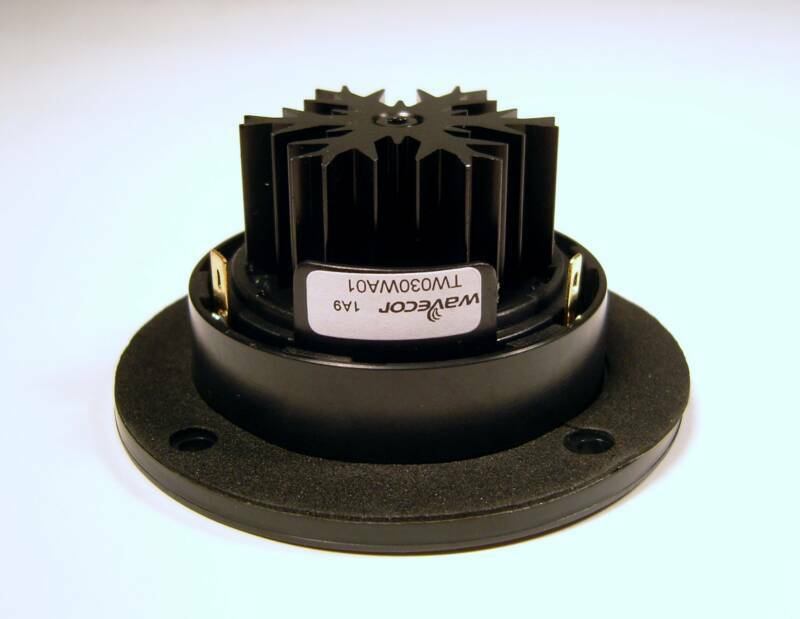

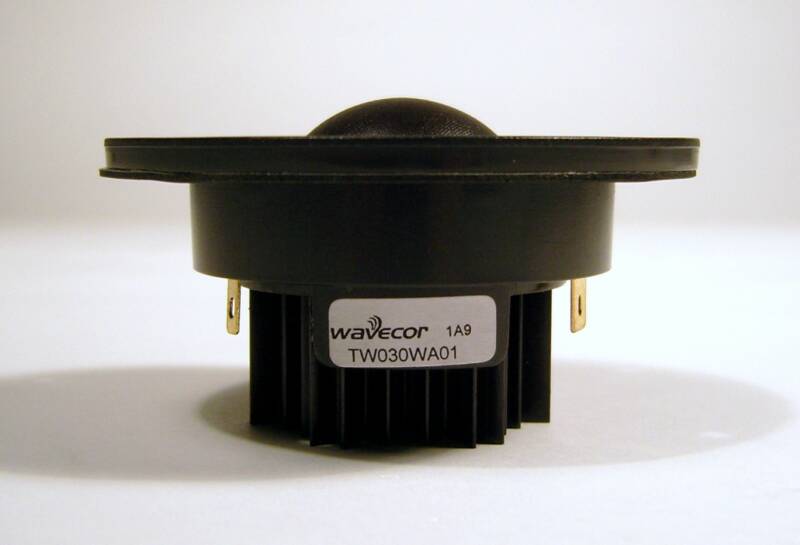

TW030WA01
This tweeter is found in the MTM 7 speaker and kit
Dual neodymium magnets
silk dome
no ferro fluid
heat sink
copper clad alu VC wire
For parameters visit wavecor by clicking here
Occam Audio

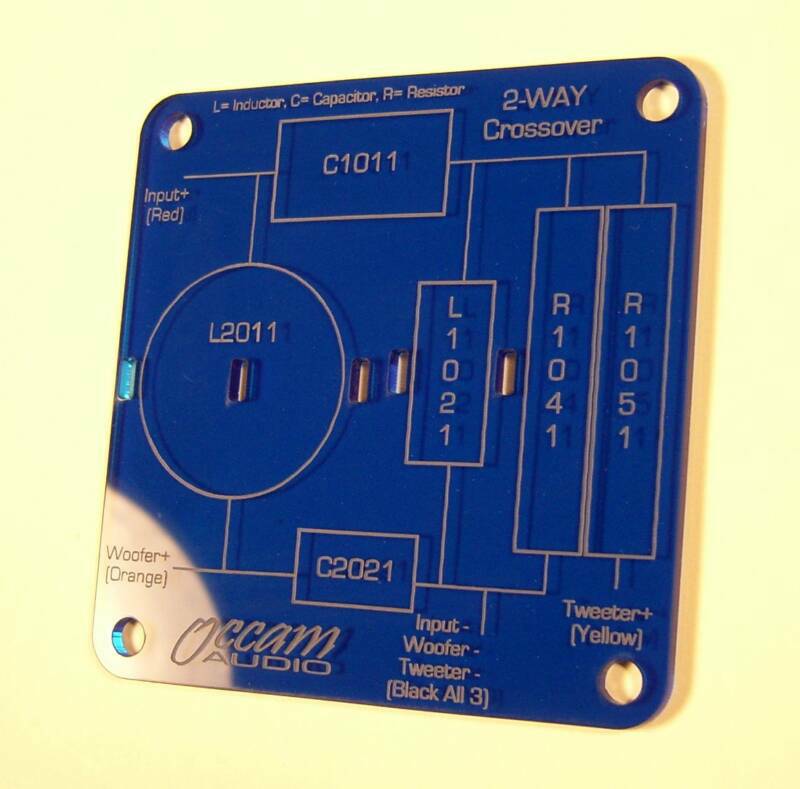

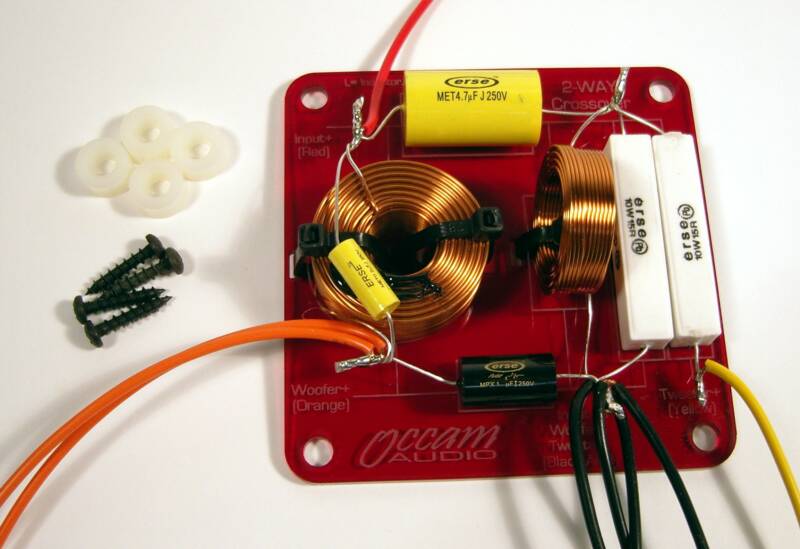

Crossover Board, (color may vary)
These crossover boards were designed to make it nearly fool proof to assemble the Occam Audio crossovers correctly. Since the crossover is the heart of the speaker, it is paramount that it is assembled correctly.
